Professionalizing the Prefab World
Engineered CFS Shop Drawings & Calculations
• Exterior / interior wall studs
• Load-bearing / non-load-bearing
• Joists, soffit & rafters
• Ceiling grids & shearwalls
• Clips / holddowns, bracing, Unistrut, trusses

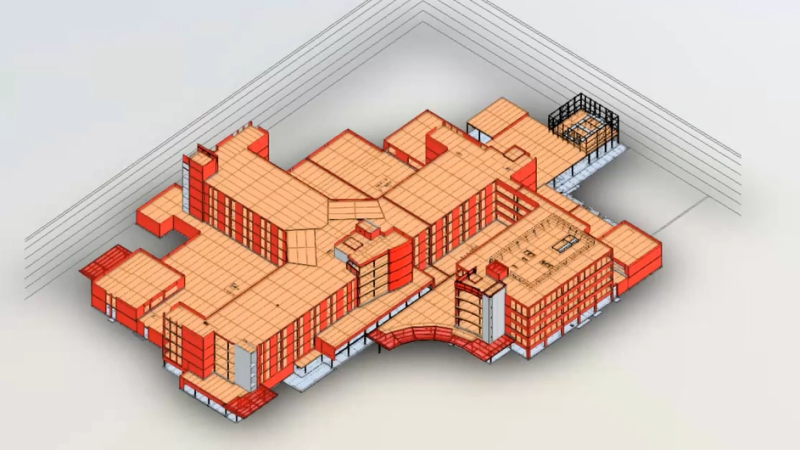

• Revit-based 3-D modelling (when model provided)
• Fully integrated with Autodesk Construction Cloud & Build
EOR – Structural Drawings
Foundation Design
• Slab-on-grade (conventional)
• Stiffened slab (waffle)
• Spread footings
• Retaining walls
Framing Design
• Structural steel
• Wood / cold-formed steel
CFS Panel Fabrication Tickets (Framing + Finish)
• Shop fabrication framing tickets
• Shop fabrication finish tickets (STOpanel, Dryvit, etc.)
• Detailed bill of materials for procurement
CFS BIM Collaboration
• 3-D coordination and clash detection
• Issue tracking & cloud file sharing
• Revit-based & Navisworks modelling per project BIM execution plan
CFS Estimating & Bill of Materials
Panelized take-offs:
• Preliminary engineering of exterior, demising & corridor walls
• Lateral / opening analysis
• Panel modelling for quantity verification
• Sq-ft & linear-ft summaries + detailed BOM export
Modular / Prototypes
• Design and modelling services tailored for modular construction and rapid prototypes
CFS Consultation
• Production, shop management & fabrication – contact Jake
• Design, engineering & detailing – contact Joe

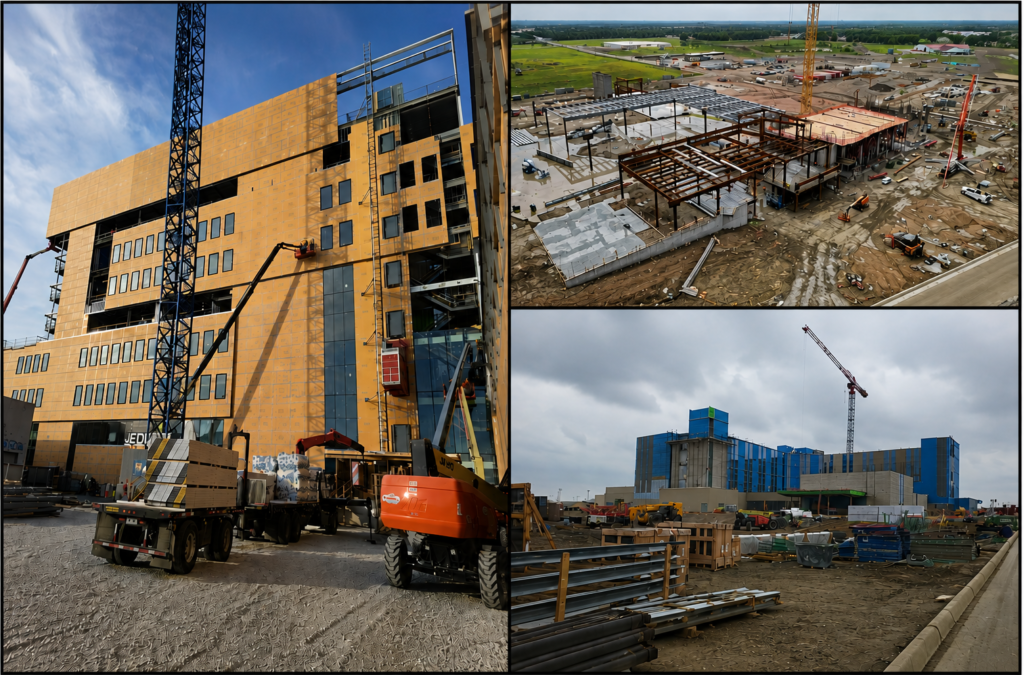

Project Spotlight – WBC Biomed Campus
Wichita, KS

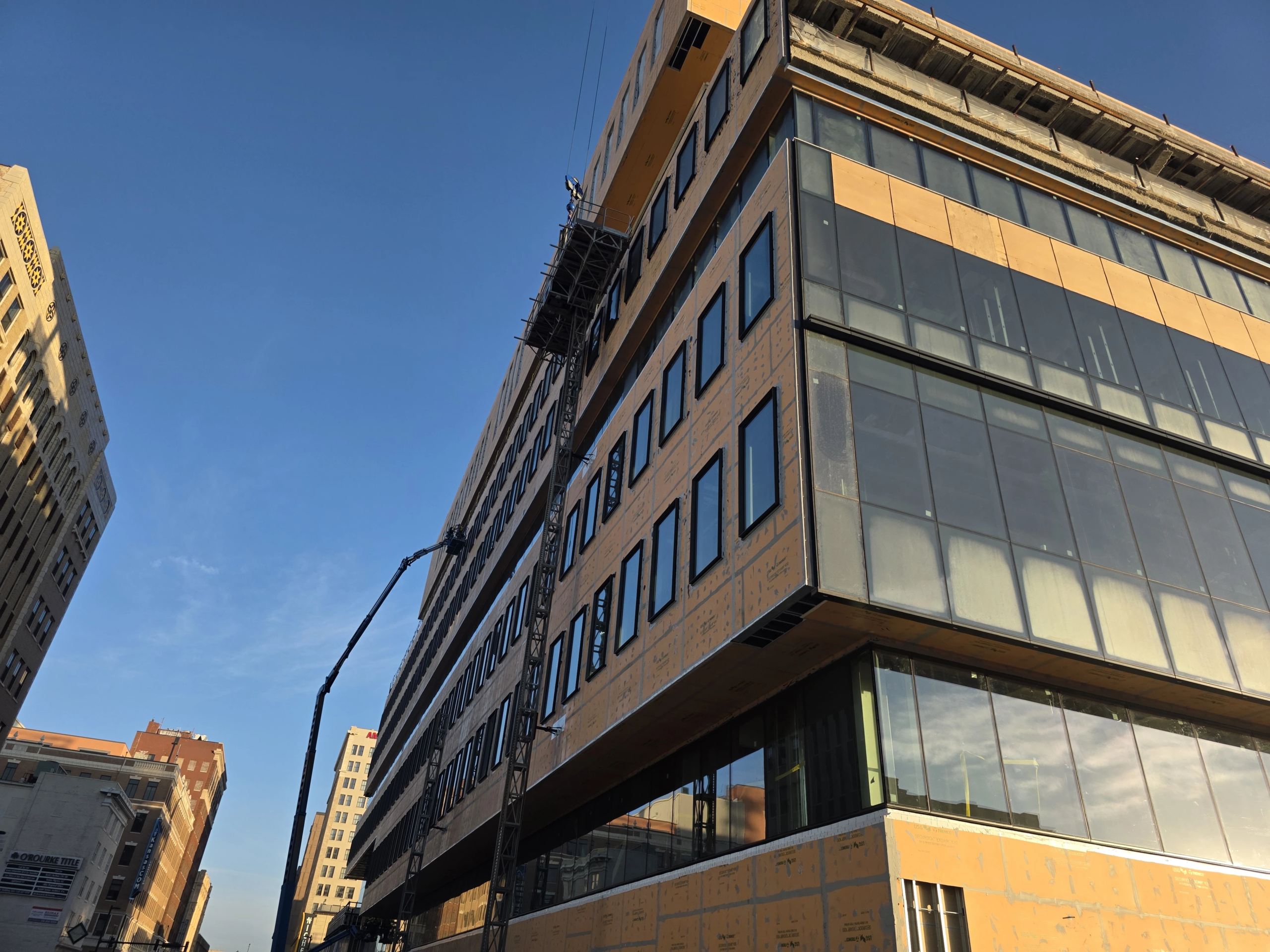

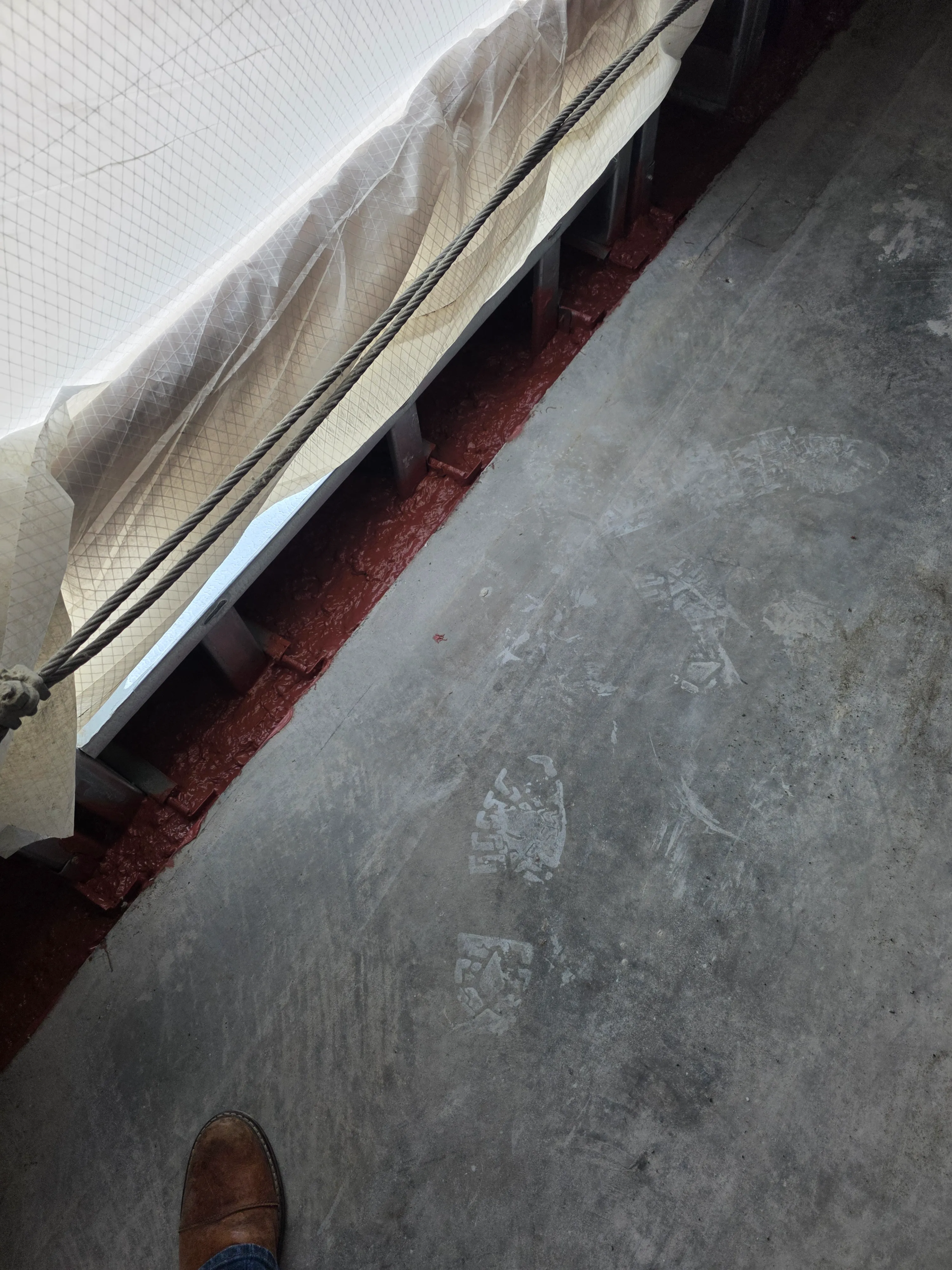

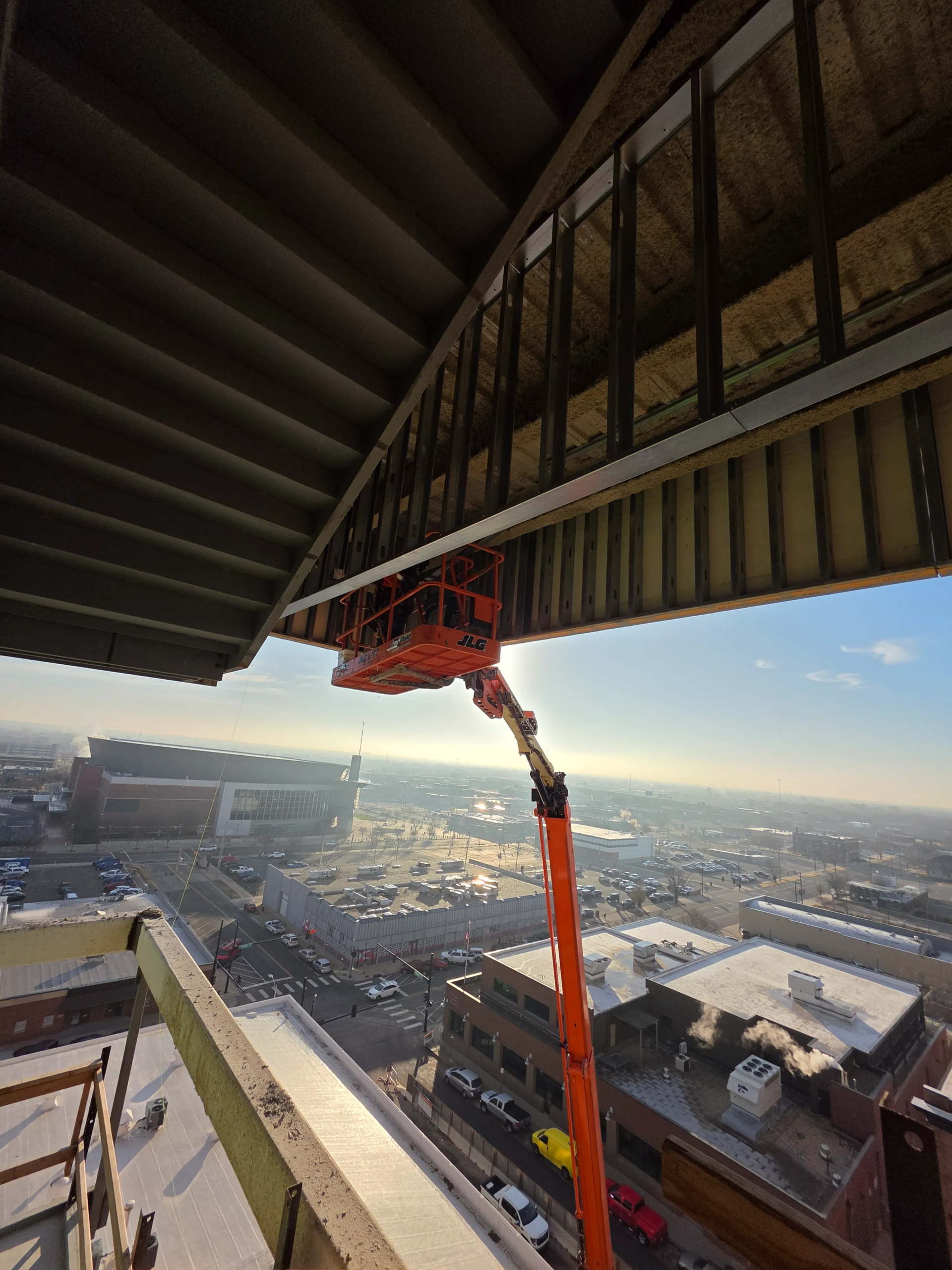

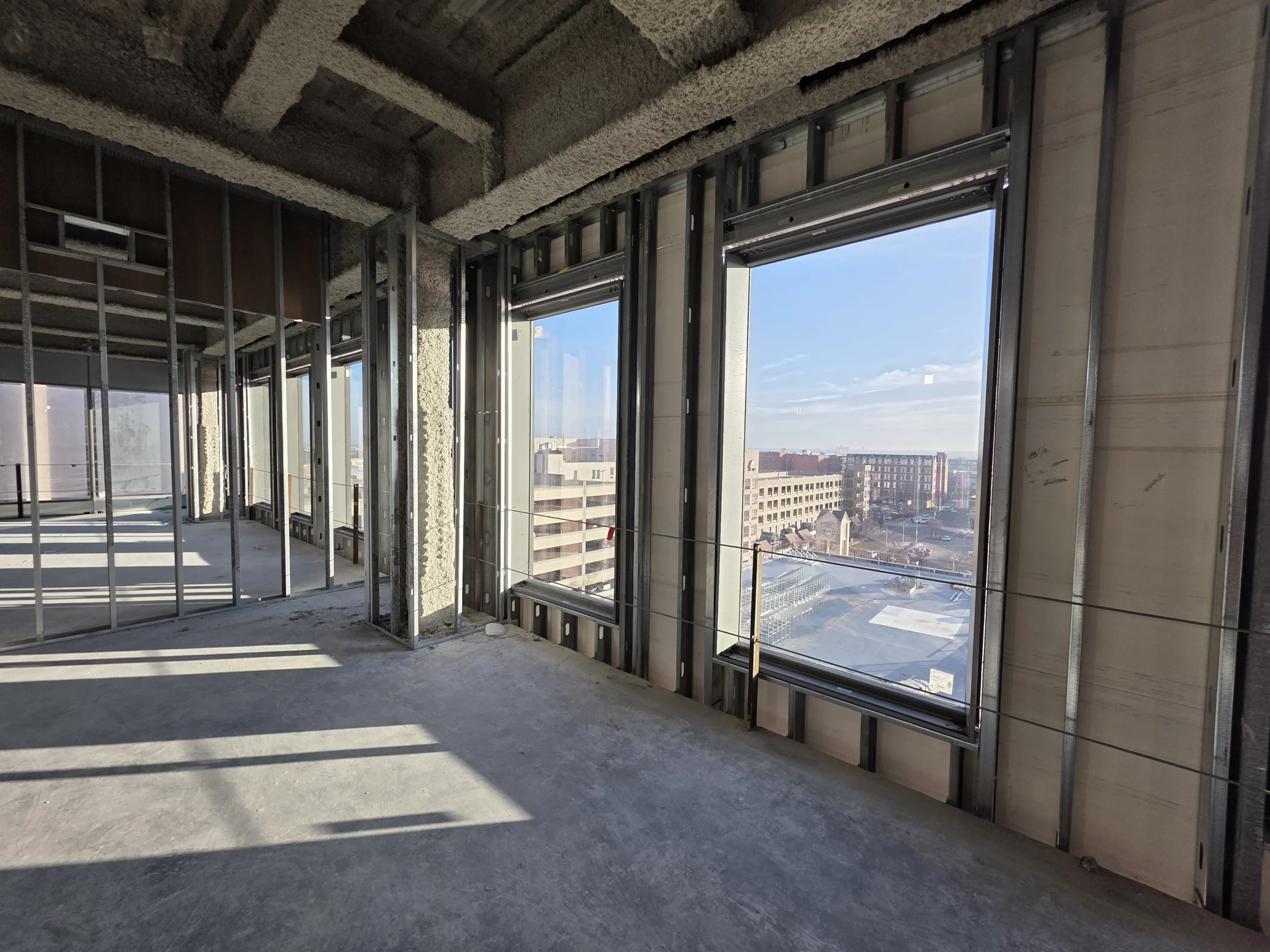

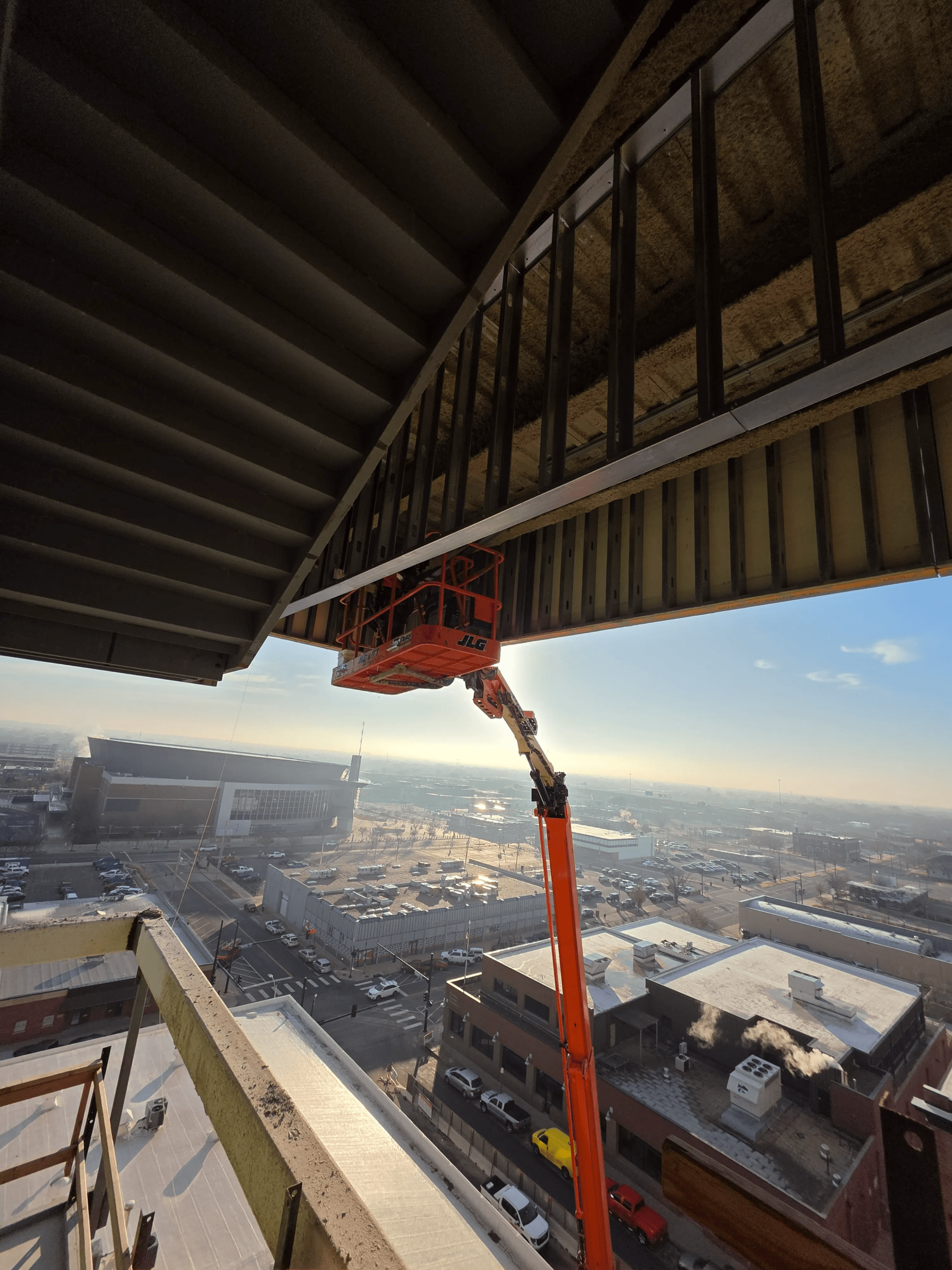

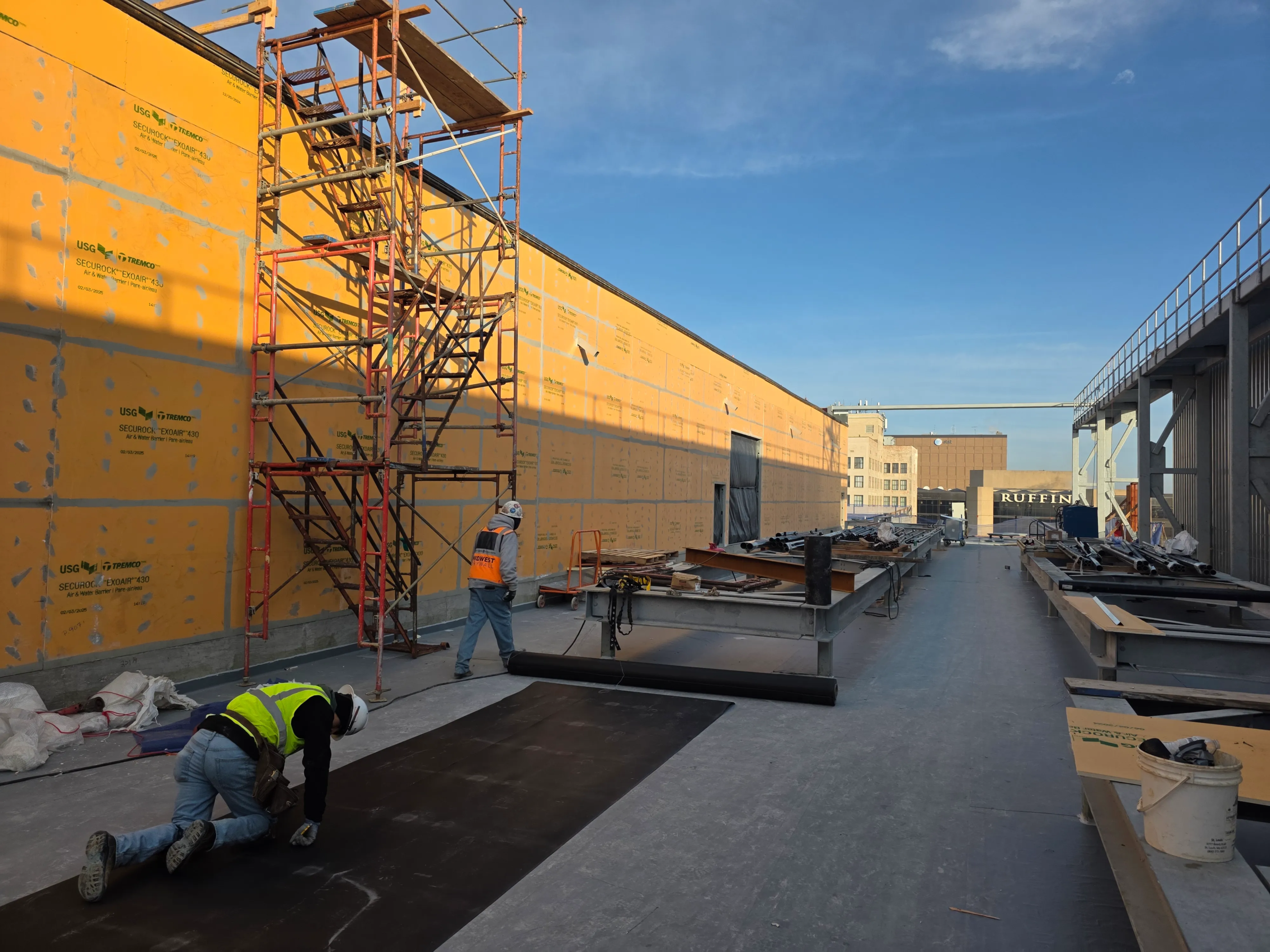

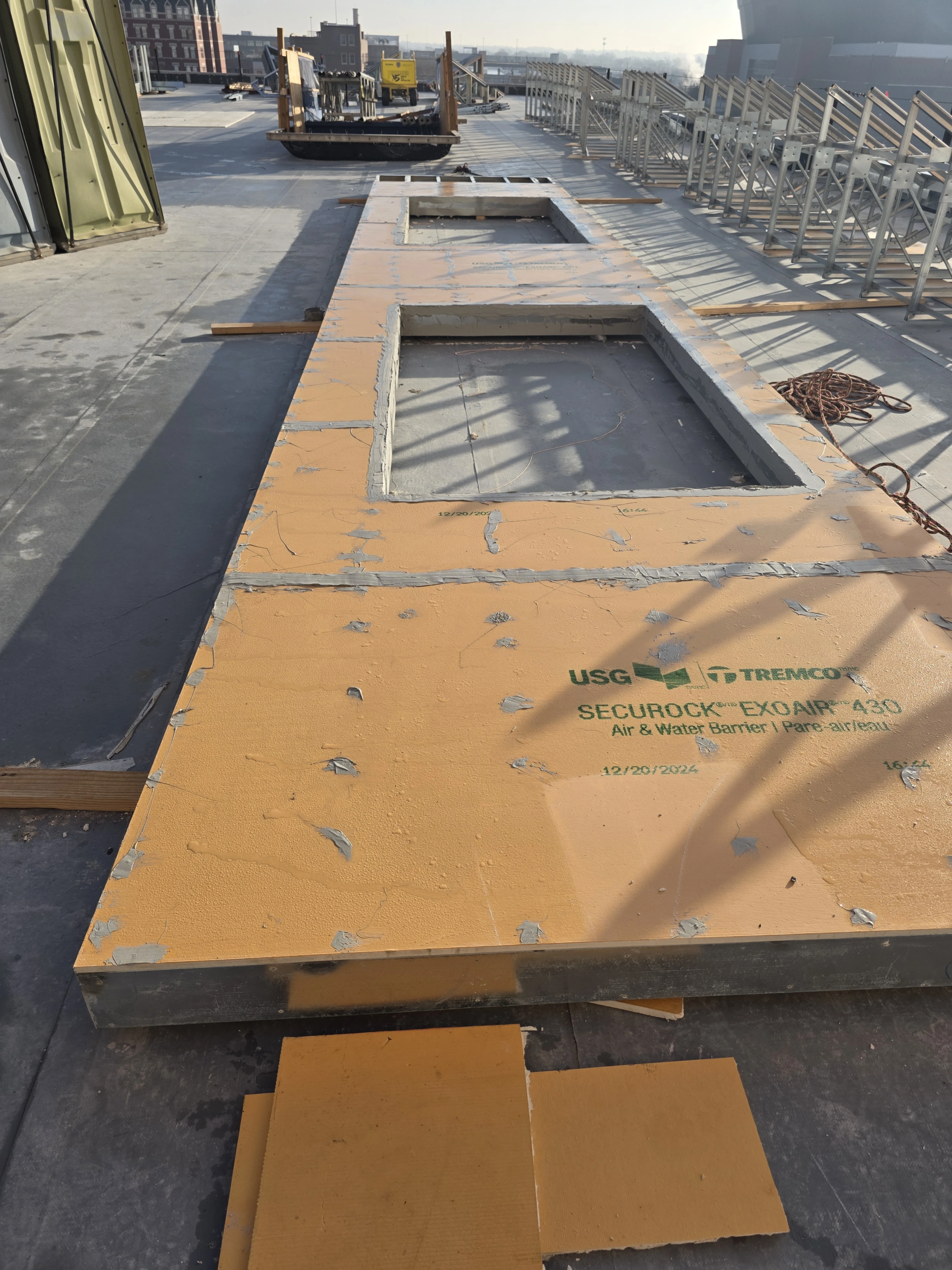

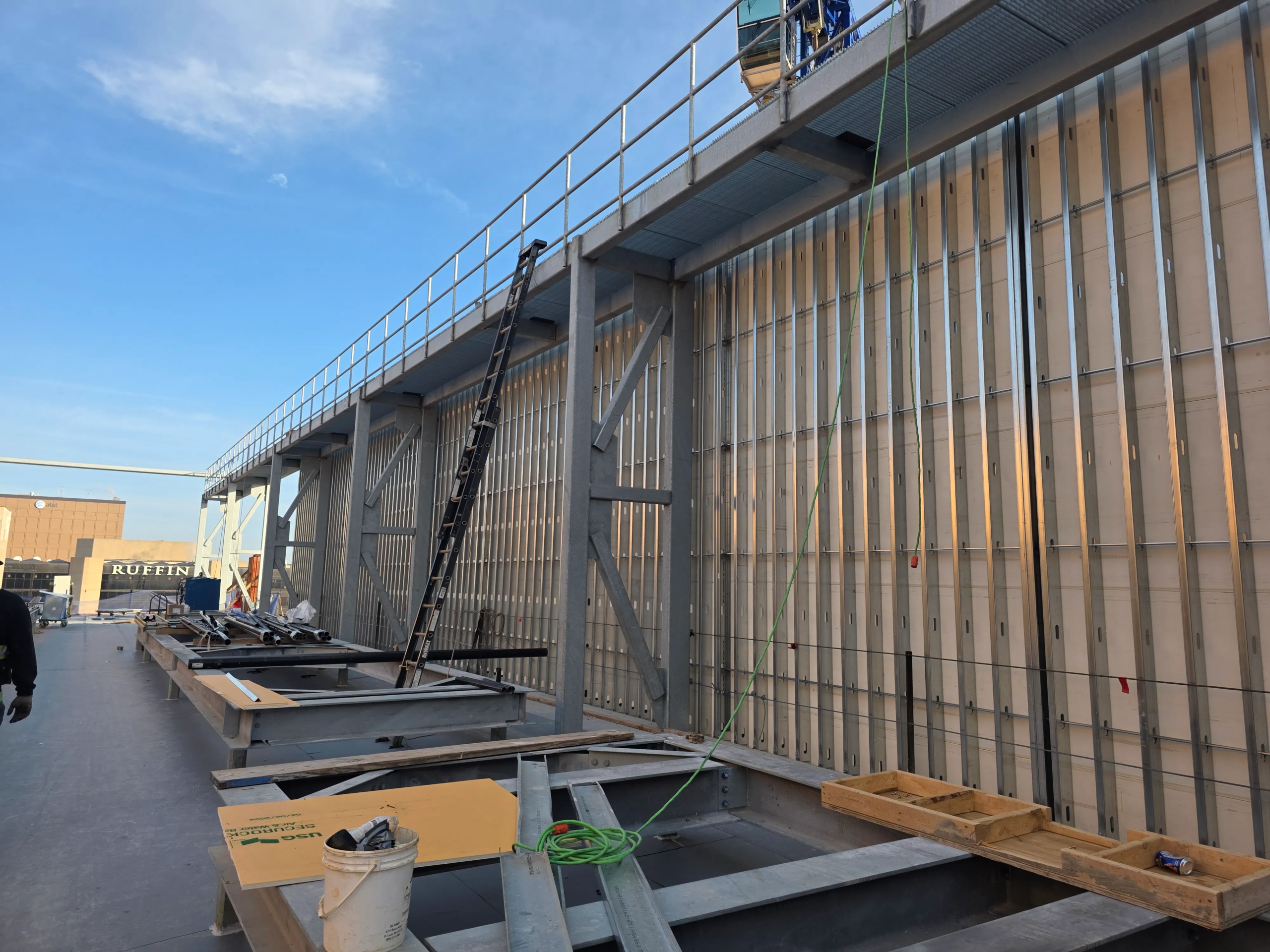

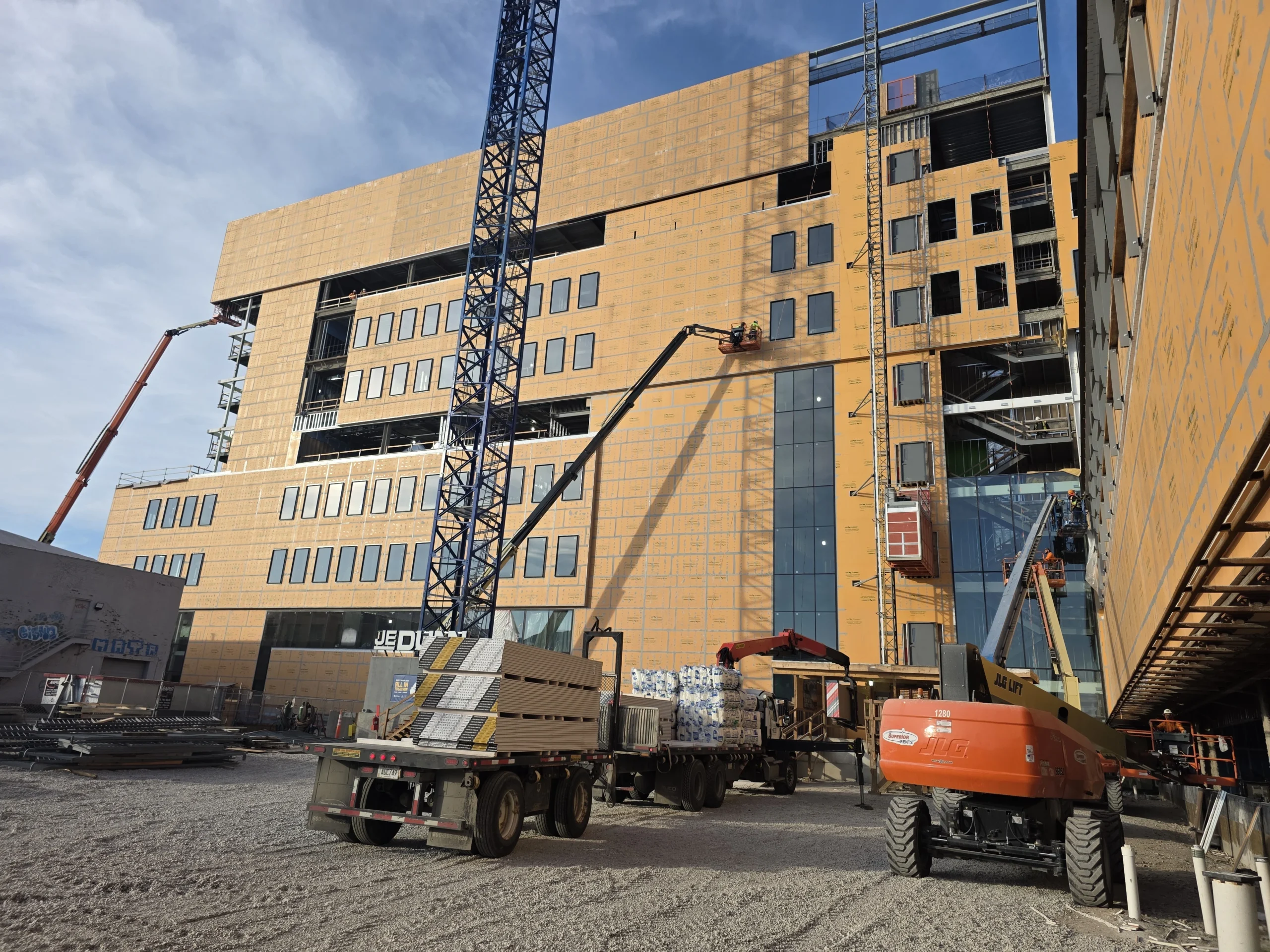

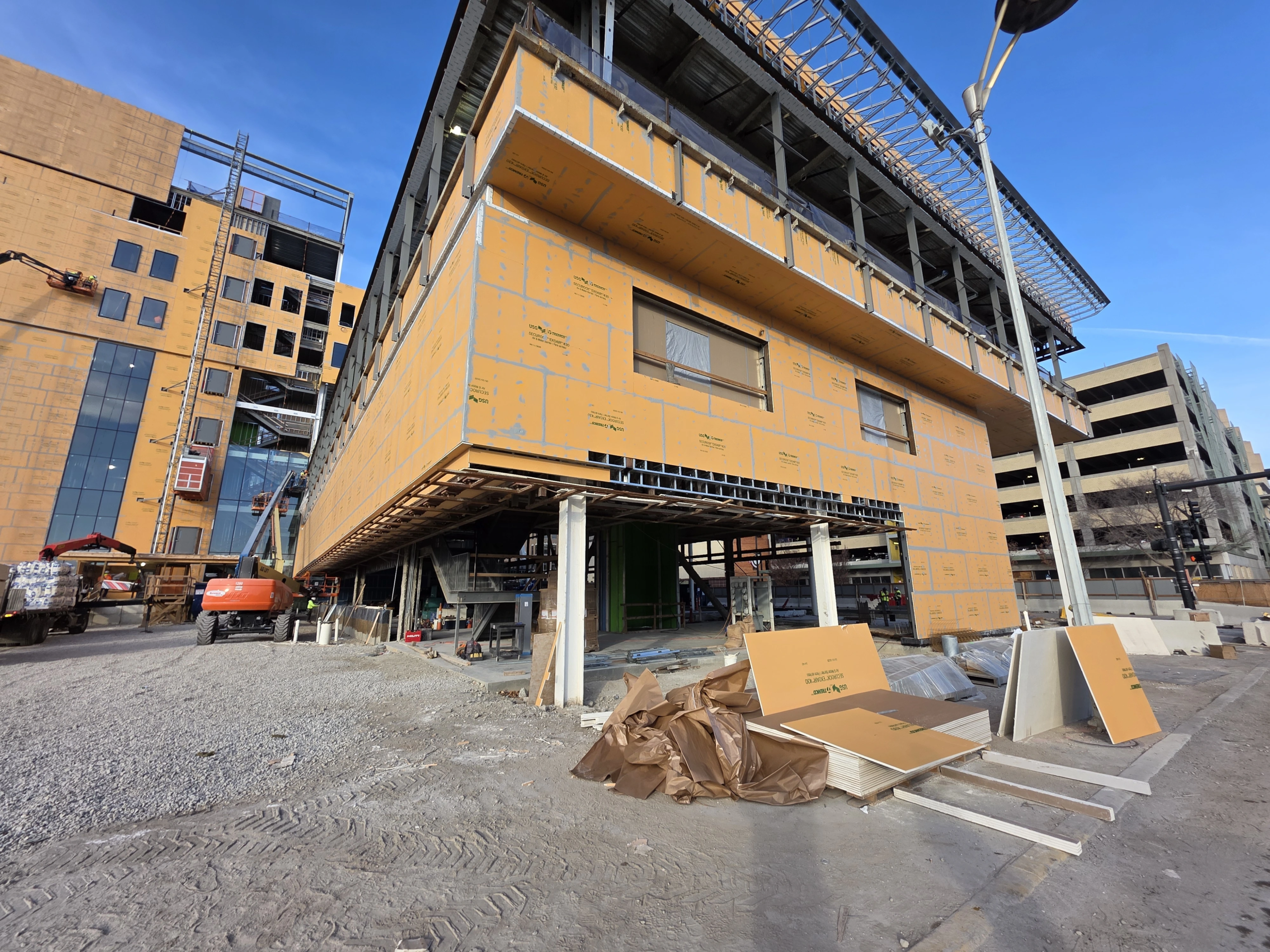

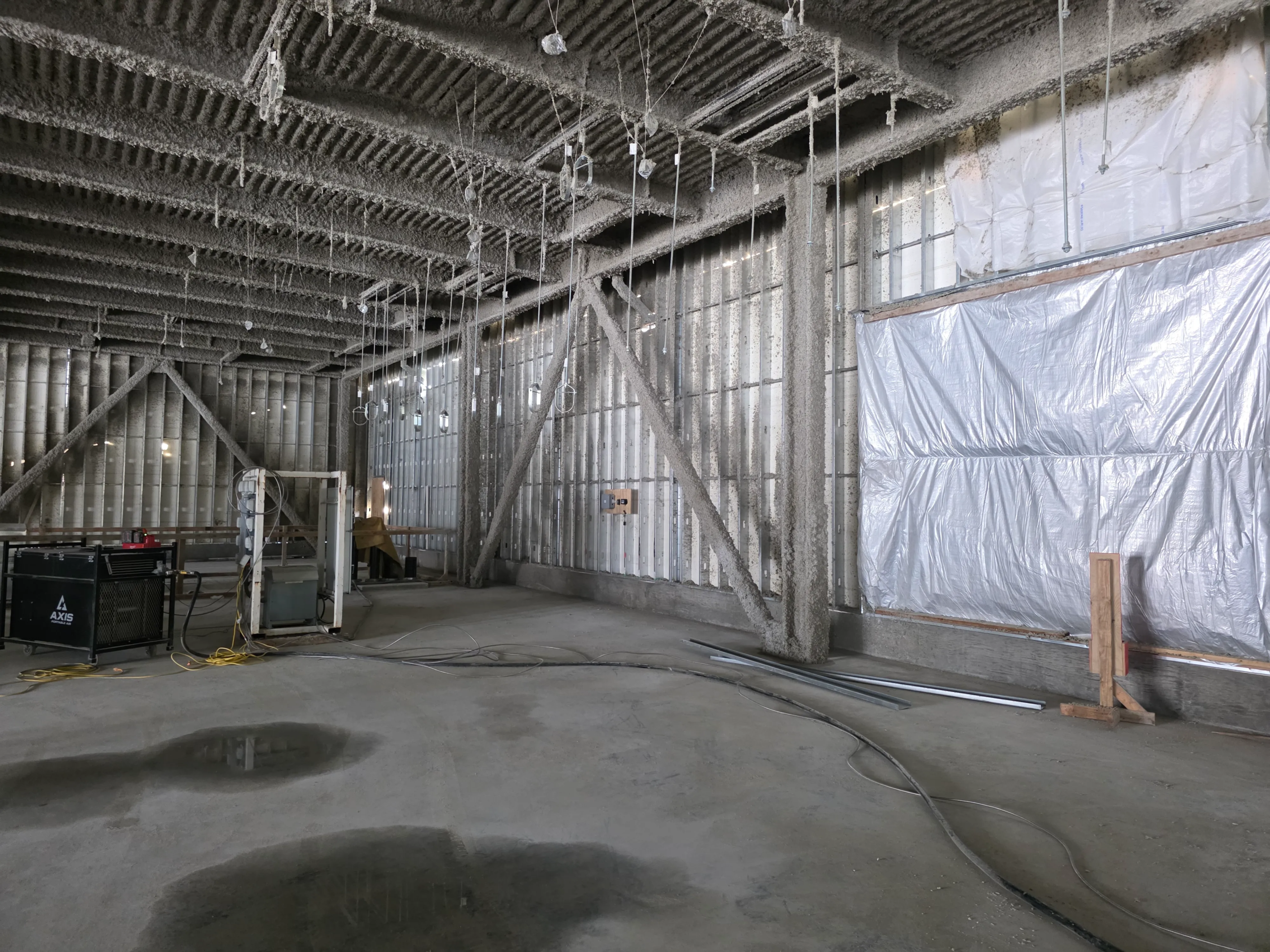

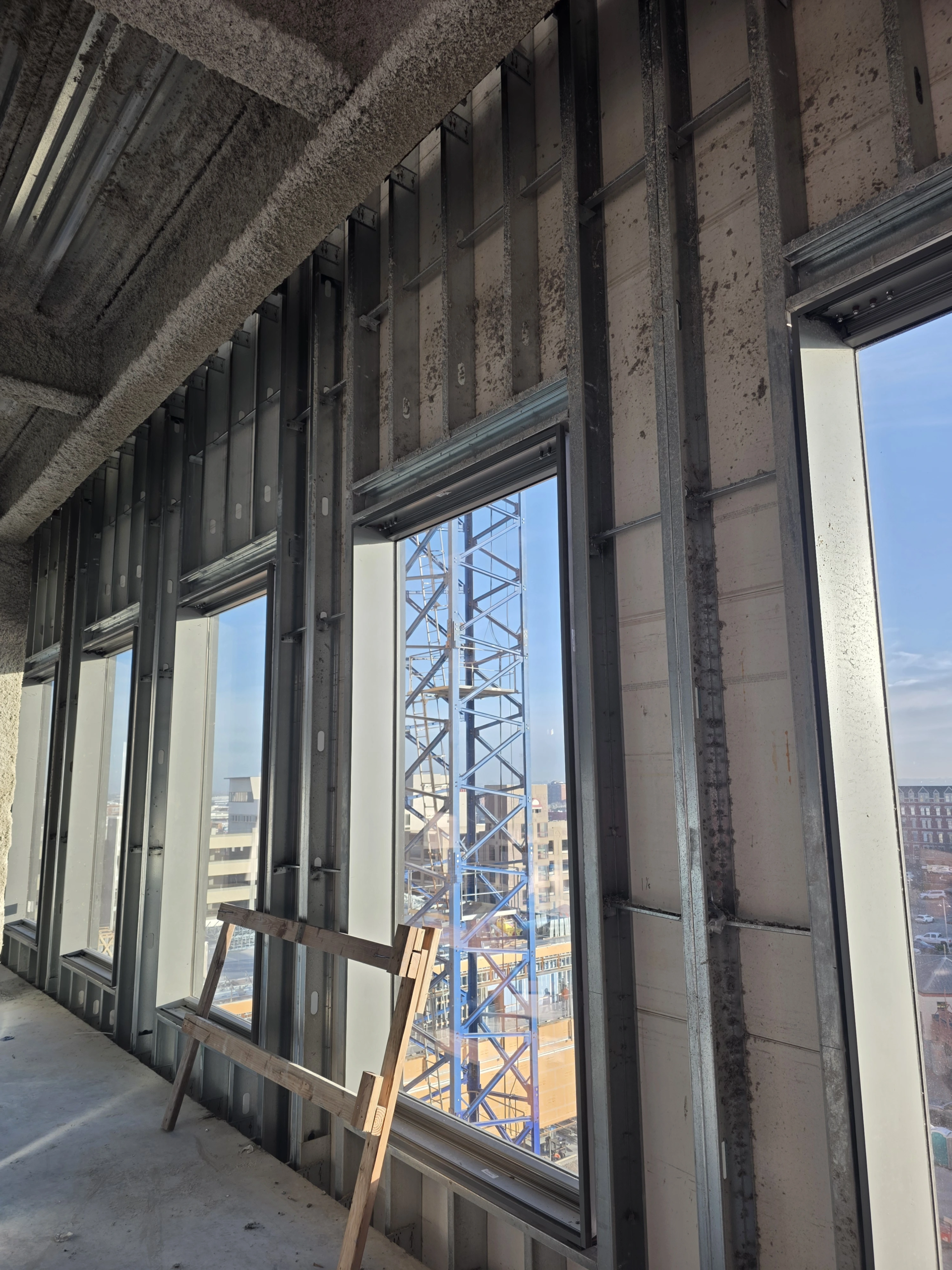

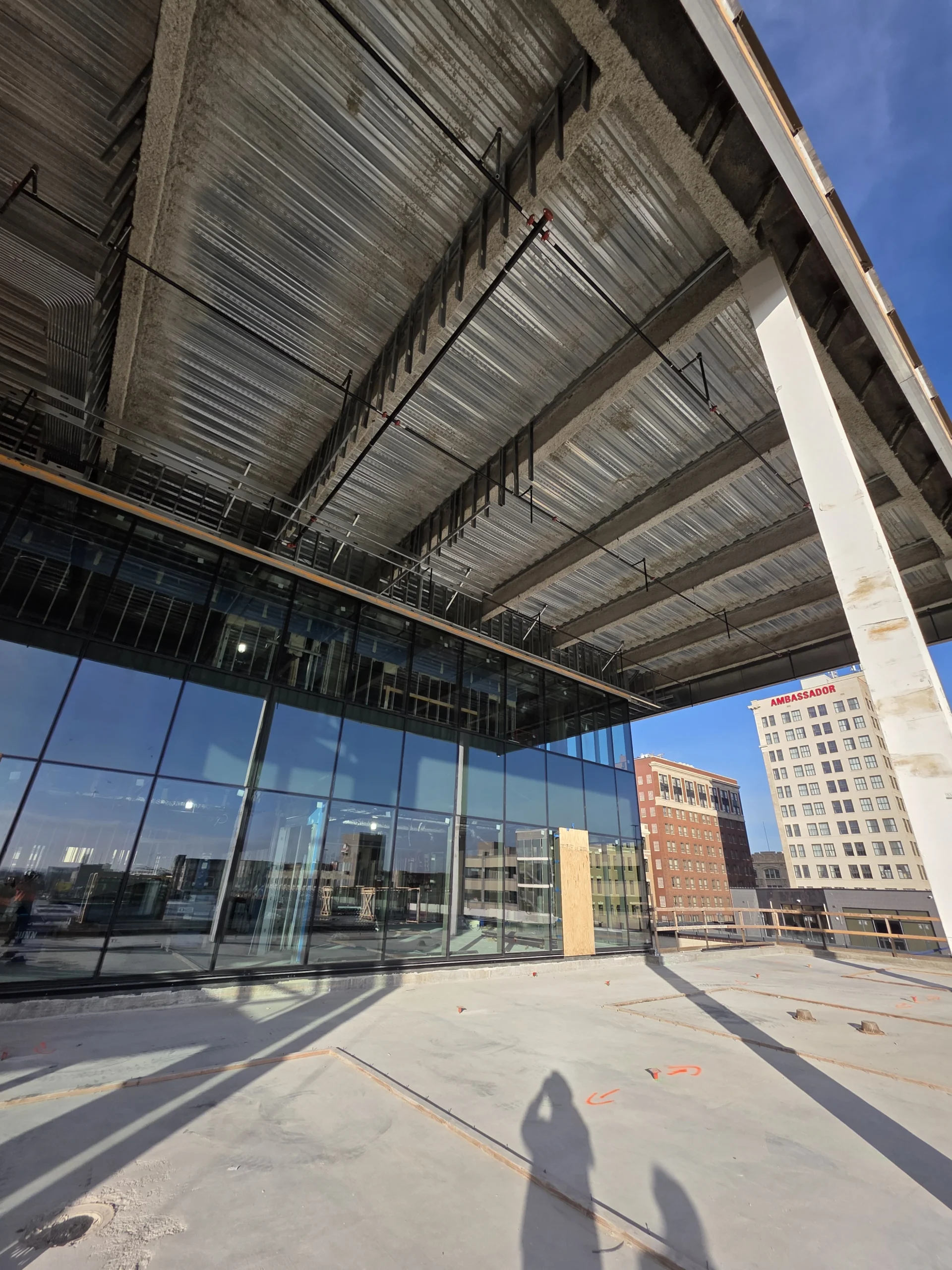

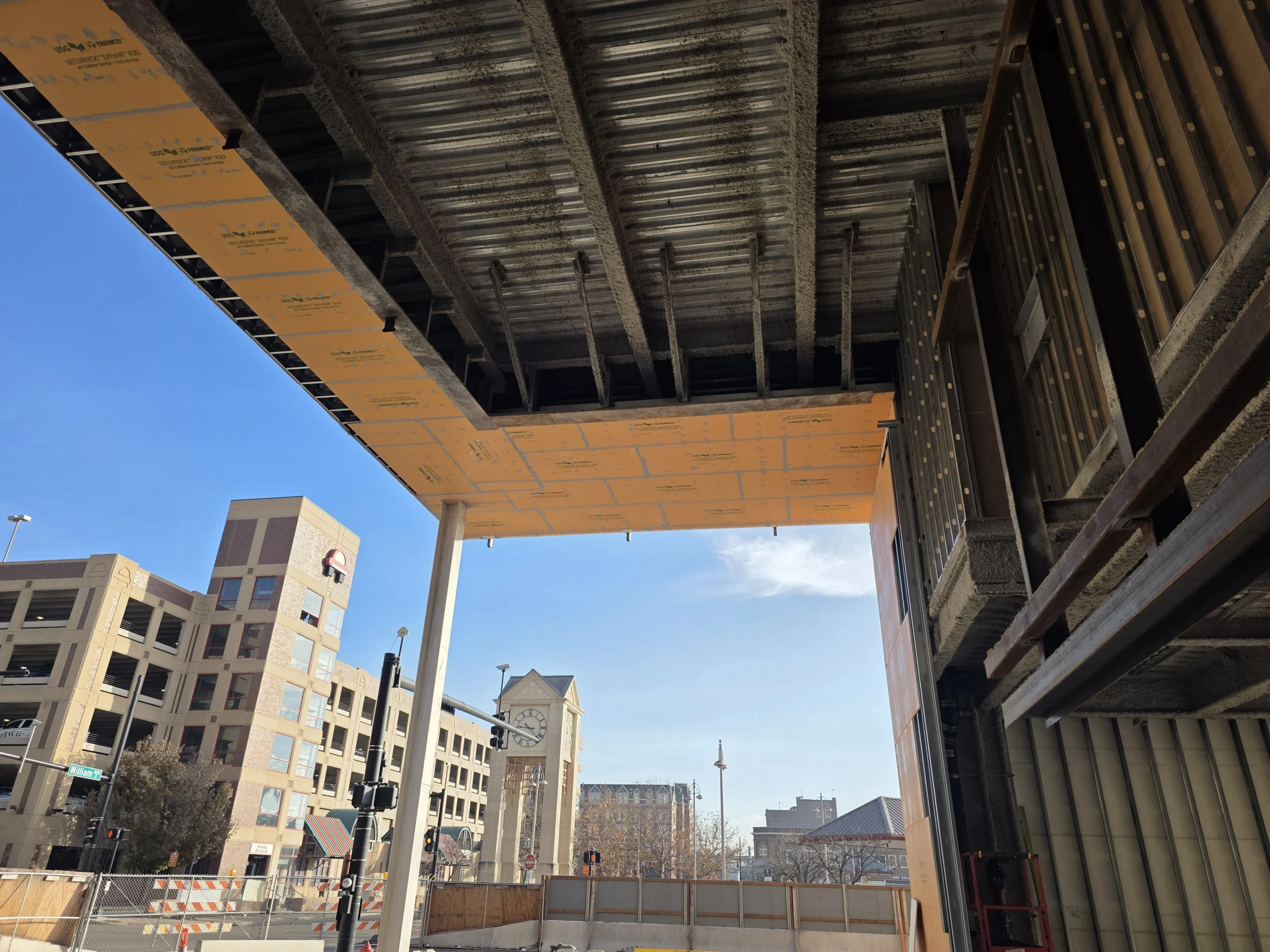

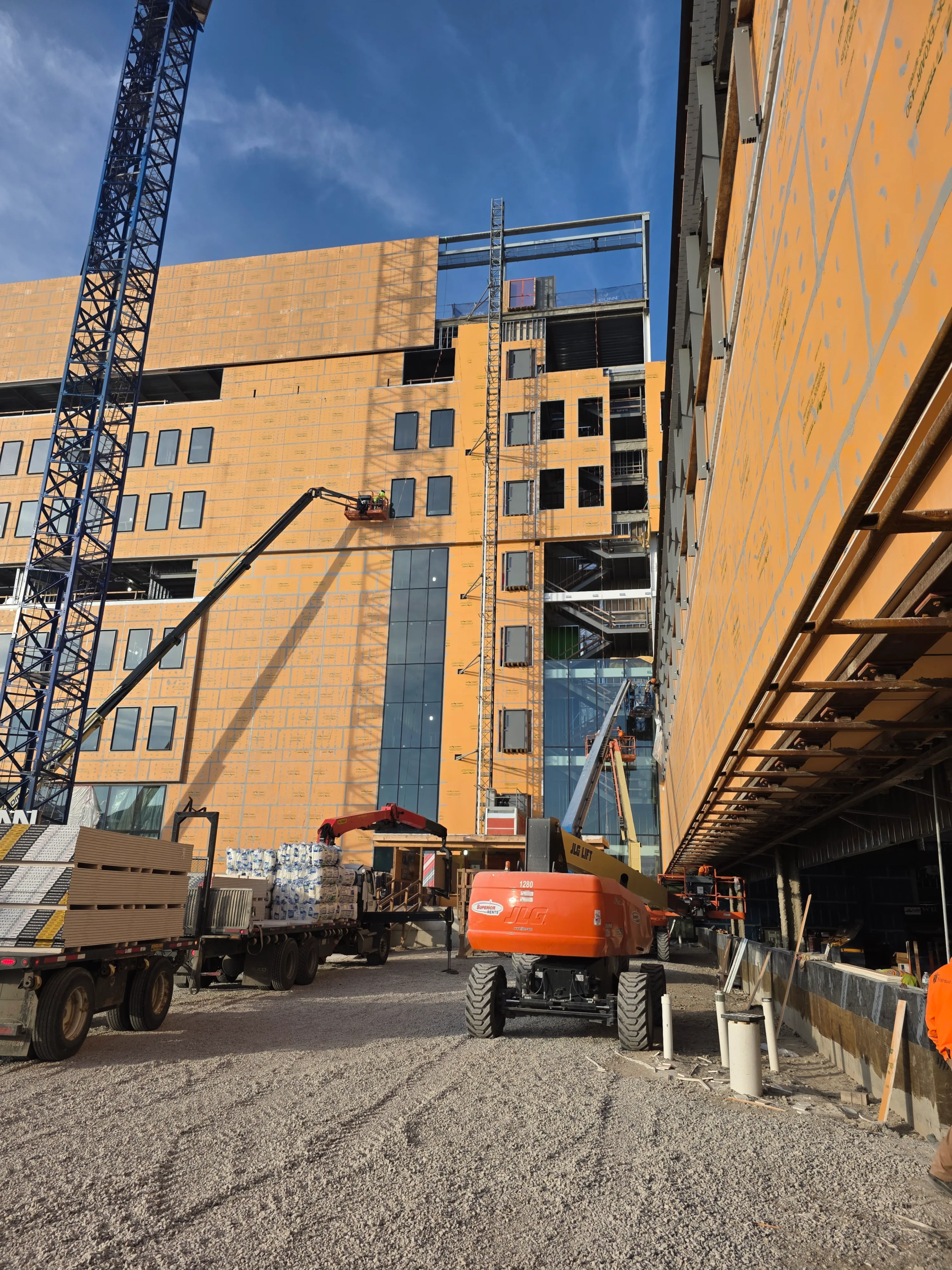

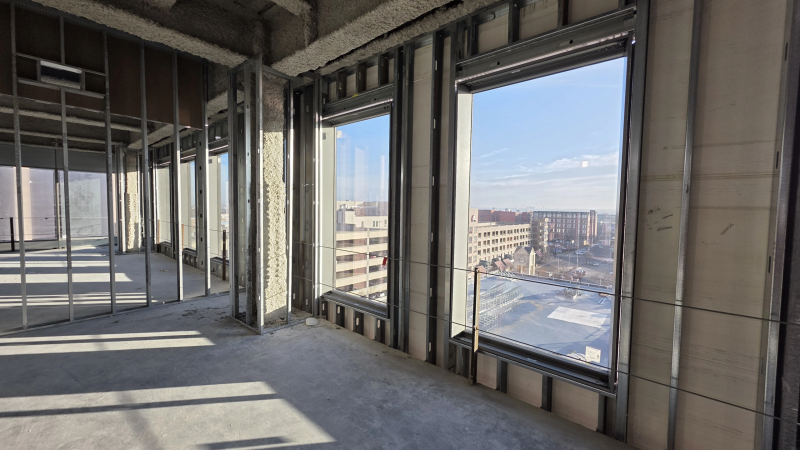

Project Photos – WBC Biomed Campus
